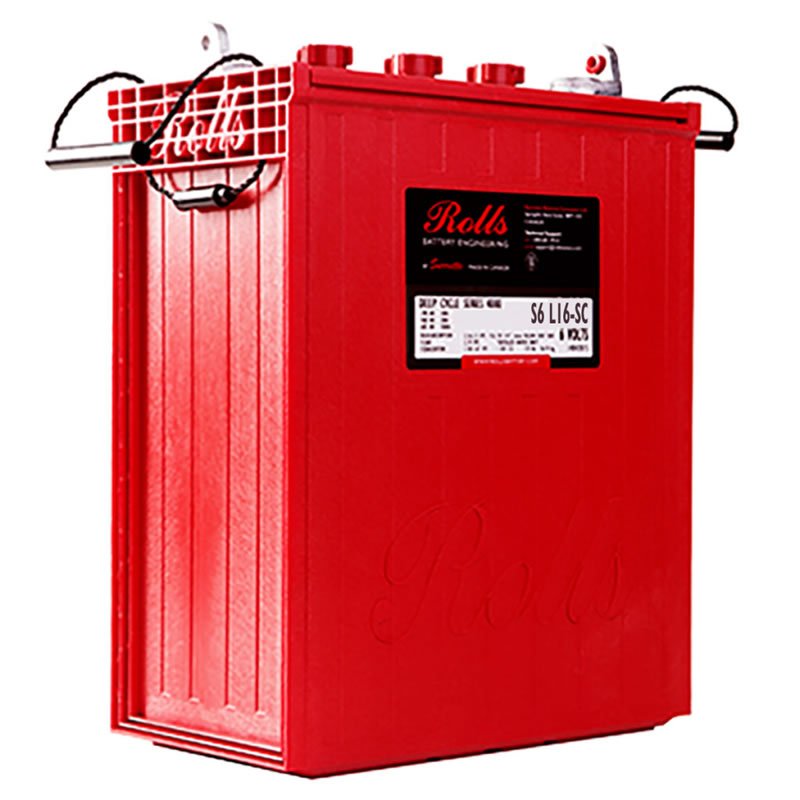

Surrette Rolls S6 L16-SC (S-605) 487Ah 6V Deep Cycle Battery

Name: Surrette Rolls S6 L16-SC (S-605) 487Ah 6V Deep Cycle Battery
SKU: S6 L16-SC
Availability: OutOfStock

$443.00

The new Surrette Rolls S6 L16 SC is an improved 6-Volt deep cycle battery with 487 Amp Hour capacity at 20 hour rate. It features thick, positive plates and large liquid reserve for high cycles. The container is built with a lightweight and strong container with integrated rope handles.

Out of stock

SKU: S6 L16-SC Category: Surrette Rolls Batteries

Description
Additional information

Description

Surrette Rolls S6 L16-SC battery is currently not in production; consider replacing it with the S6 L16-HC model or call for more alternatives.

The new Surrette Rolls S6 L16 SC (formerly S-605) is an improved 6-Volt deep cycle battery with 487 Amp Hour capacity at 20 hour rate. It features thick, positive plates and large liquid reserve for high cycles. The container is built with a lightweight and strong container with integrated rope handles.

The table below offers the Ampere hour capacity ratings for the S6 L16-SC battery based on specific gravity of 1.280 at 25°C (77°F). For calculations reduce capacities 5% for specific gravity of 1.265 and 10% for 1.250.

Hour Rate	Capacity / AMP Hour	Current / AMPs
@ 100 Hour Rate	560 AH	5.60 A
@ 72 Hour Rate	545 AH	7.58 A
@ 50 Hour Rate	526 AH	10.52 A
@ 20 Hour Rate	487 AH	24.35 A
@ 15 Hour Rate	458 AH	30.52 A
@ 10 Hour Rate	438 AH	43.83 A
@ 8 Hour Rate	419 AH	52.35 A
@ 5 Hour Rate	328 AH	65.52 A
@ 1 Hour Rate	229 AH	228.89 A

The Surrette S6 L16 comes with a 3-year warranty.

Specifications Surrette Rolls S6 L16-SC:
Container and cover: High Density Polypropylene
Weight (wet): 59.4kg, 131lbs
Dimensions: 318x181x425mm (12 1/2 x 7 1/8 x 16 3/4 inches)
100 hr rate capacity: 560Ah
20 hr rate capacity: 487Ah

Surrette recently changed some of their renewable energy S 4000 series models; the table bellow shows the new models and the model number they replaced:

Model number	Old model	Voltage	Ah @ 100hrs	Ah @ 20hrs	Weight	Length	Width	Height (inc. terminals)
S6 L16	S-480	6V	449Ah	390Ah	51.0kg / 112.5lbs	31.8cm / 12.5″	18.1cm / 7.13″	42.55cm / 16.75″
S6 L16 HC	S-550	6V	512Ah	445Ah	55.5kg / 122.5lbs	31.8cm / 12.5″	18.1cm / 7.13″	42.55cm / 16.75″
S6 L16 SC	S-605	6V	560Ah	487Ah	56.5kg / 124.5lbs	31.8cm / 12.5″	18.1cm / 7.13″	42.55cm / 16.75″
S2 L16	S-1450	2V	1344Ah	1169Ah	54.5kg / 120lbs	31.8cm / 12.5″	18.1cm / 7.13″	43.2cm / 17.0″
S2 L16 HC	S-1660	2V	1535Ah	1335Ah	57.5kg / 127lbs	31.8cm / 12.5″	18.1cm / 7.13″	43.2cm / 17.0″
S2 L16 SC	S-1860	2V	1728Ah	1503Ah	59.0kg / 130lbs	31.8cm / 12.5″	18.1cm / 7.13″	43.2cm / 17.0″
