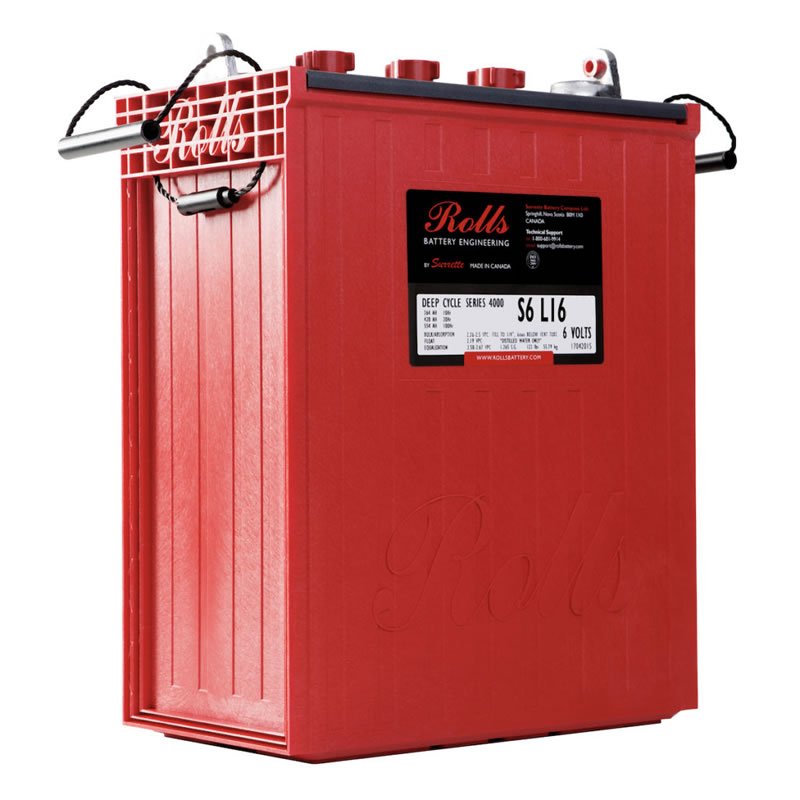

Surrette Rolls S6 L16 (S-480) 390Ah 6V Deep Cycle Battery

Name: Surrette Rolls S6 L16 (S-480) 390Ah 6V Deep Cycle Battery
SKU: S6 L16
Availability: InStock

$307.18

The new Surrette Rolls S6 L16 is an improved 6-Volt deep cycle battery with 490 Amp Hour capacity at 20 hour rate. It features thick, positive plates and large liquid reserve for high cycles. The container is built with a lightweight and strong container with integrated rope handles.

SKU: S6 L16 Category: Surrette Rolls Batteries

Description
Additional information

Description

The new Surrette Rolls S6 L16 (formerly S-480) is an improved 6-Volt deep cycle battery with 390 Amp Hour capacity at 20 hour rate. It features thick, positive plates and large liquid reserve for high cycles. The container is built with a lightweight and strong container with integrated rope handles.

The table below offers the Ampere hour capacity ratings for the S6 L16 battery based on specific gravity of 1.280 at 25°C (77°F). For calculations reduce capacities 5% for specific gravity of 1.265 and 10% for 1.250.

Hour Rate	Capacity / AMP Hour	Current / AMPs
@ 100 Hour Rate	449 AH	4.49 A
@ 72 Hour Rate	437 AH	6.07 A
@ 50 Hour Rate	421 AH	8.42 A
@ 20 Hour Rate	390 AH	19.50 A
@ 15 Hour Rate	367 AH	24.44 A
@ 10 Hour Rate	351 AH	35.10 A
@ 8 Hour Rate	335 AH	41.93 A
@ 5 Hour Rate	312 AH	62.40 A
@ 1 Hour Rate	183 AH	183.30 A

The Surrette S6 L16 comes with a 3-year warranty.

Specifications Surrette Rolls S6 L16:
Container and cover: High Density Polypropylene
Weight (wet): 51kg, 113lbs
Dimensions: 318x181x425mm (12 1/2 x 7 1/8 x 16 3/4 inches)
100 hr rate capacity: 449Ah
50 hr rate capacity: 421Ah
20 hr rate capacity: 390Ah

Surrette recently changed some of their renewable energy S 4000 series models; the table bellow shows the new models and the model number they replaced:

Model number	Old model	Voltage	Ah @ 100hrs	Ah @ 20hrs	Weight	Length	Width	Height (inc. terminals)
S6 L16	S-480	6V	449Ah	390Ah	51.0kg / 112.5lbs	31.8cm / 12.5″	18.1cm / 7.13″	42.55cm / 16.75″
S6 L16 HC	S-550	6V	512Ah	445Ah	55.5kg / 122.5lbs	31.8cm / 12.5″	18.1cm / 7.13″	42.55cm / 16.75″
S6 L16 SC	S-605	6V	560Ah	487Ah	56.5kg / 124.5lbs	31.8cm / 12.5″	18.1cm / 7.13″	42.55cm / 16.75″
S2 L16	S-1450	2V	1344Ah	1169Ah	54.5kg / 120lbs	31.8cm / 12.5″	18.1cm / 7.13″	43.2cm / 17.0″
S2 L16 HC	S-1660	2V	1535Ah	1335Ah	57.5kg / 127lbs	31.8cm / 12.5″	18.1cm / 7.13″	43.2cm / 17.0″
S2 L16 SC	S-1860	2V	1728Ah	1503Ah	59.0kg / 130lbs	31.8cm / 12.5″	18.1cm / 7.13″	43.2cm / 17.0″
